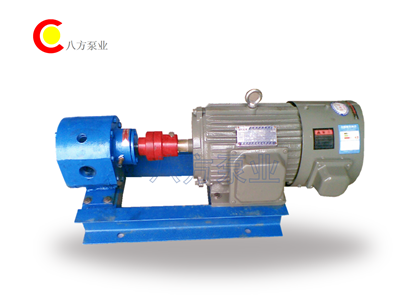

YCB-G保温泵
YCB-G保温泵属外啮合齿轮泵，齿形为圆弧加正弦曲线复合而成。输送介质广泛，输出流量及压力稳定。该泵泵体设有保温夹层及进出接口，可采用导热油、蒸汽、热水、冷水等媒体对输送介质和泵进行加热、保温及冷却。当输送介质的粘度大于1500cst时，应采用减速传动方式。
YCB-G保温泵适用于输送不含固体颗粒，温度不高于300℃的重油，沥青，树脂，洗涤剂。胶类等各种在常温下有凝固性的介质，并适用于高寒地区室外安装及工艺过程中要求保温的场合。
YCB-G保温泵技术参数：
型号 | 流量 Q | 转速 n r/min | 排出压力 p Mpa | 必需汽 蚀余量 r m | 效率 η % | 电动机 | ||
m3/h | 频率 Hz | 功率KW | 型号 | |||||
YCB0.6-0.6 | 0.6 | 910 | 0.6 | 5.5 | 32 | 50 | 0.75 | Y90S-6 |
1.0 | 1390 | 50 | 0.75 | Y80L2-4 | ||||
0.7 | 1130 | 60 | 0.75 | Y90S-6 | ||||
1.2 | 1710 | 60 | 0.75 | Y80L2-4 | ||||
YCB0.6-1.6 | 0.6 | 910 | 1.6 | 7.0 | 70 | 50 | 1.1 | Y90L-6 |
1.0 | 1400 | 50 | 1.5 | Y90L-4 | ||||
0.7 | 1130 | 60 | 1.1 | Y90L-6 | ||||
1.2 | 1710 | 60 | 1.1 | Y90S-4 | ||||
YCB1.6-0.6 | 1.6 | 910 | 0.6 | 5.5 | 42 | 50 | 0.75 | Y90S-6 |
2.5 | 1400 | 50 | 1.1 | Y90S-4 | ||||
1.9 | 1130 | 60 | 1.1 | Y90L-6 | ||||
3.0 | 1710 | 60 | 1.5 | Y90L-4 | ||||
YCB1.6-1.6 | 1.6 | 940 | 1.6 | 7.0 | 71 | 50 | 2.2 | Y112M-6 |
2.5 | 1440 | 50 | 4 | Y112M-4 | ||||
1.9 | 1150 | 60 | 2.2 | Y112M-6 | ||||
3.0 | 1750 | 60 | 4 | Y112M-4 | ||||
YCB3.3-0.6 | 3.3 | 940 | 0.6 | 5.0 | 60 | 50 | 1.5 | Y100L-6 |
5.0 | 1420 | 50 | 2.2 | Y100L1-4 | ||||
4.0 | 1150 | 60 | 1.5 | Y100L-6 | ||||
6.0 | 1730 | 60 | 2.2 | Y100L1-4 | ||||
YCB3.3-1.6 | 3.3 | 960 | 1.6 | 7.0 | 72 | 50 | 5.5 | Y132M2-6 |
5.0 | 1440 | 50 | 7.5 | Y132M-4 | ||||
4.0 | 1170 | 60 | 4 | Y132M1-6 | ||||
6.0 | 1750 | 60 | 7.5 | Y132M-4 | ||||
YCB4-0.6 | 4.0 | 940 | 0.6 | 5.0 | 60 | 50 | 1.5 | Y100L-6 |
6.0 | 1420 | 50 | 2.2 | Y100L1-4 | ||||
4.8 | 1150 | 60 | 2.2 | Y112M-6 | ||||
7.2 | 1730 | 60 | 3 | Y100L2-4 | ||||
YCB4-1.6 | 4.0 | 960 | 1.6 | 7.0 | 72 | 50 | 5.5 | Y132M2-6 |
6.0 | 1440 | 50 | 7.5 | Y132M-4 | ||||
4.8 | 1170 | 60 | 5.5 | Y132M-6 | ||||
7.2 | 1750 | 60 | 7.5 | Y132M-4 | ||||
YCB8-0.6 | 8.0 | 960 | 0.6 | 5.0 | 61 | 50 | 3 | Y132S-6 |
12.0 | 1440 | 50 | 5.5 | Y132S-4 | ||||
9.6 | 1170 | 60 | 4 | Y132M1-6 | ||||
14.4 | 1750 | 60 | 5.5 | Y132S-4 | ||||
YCB8-1.6 | 8.0 | 970 | 1.6 | 7.0 | 75 | 50 | 11 | Y160L-6 |
12.0 | 1460 | 50 | 15 | Y160L-4 | ||||
9.6 | 1170 | 60 | 11 | Y160L-6 | ||||
14.4 | 1760 | 60 | 15 | Y160L-4 | ||||
YCB10-0.6 | 10.0 | 960 | 0.6 | 5.0 | 62 | 50 | 4 | Y132M1-6 |
15.0 | 1440 | 50 | 5.5 | Y132S-4 | ||||
12.0 | 1170 | 60 | 5.5 | Y132M2-6 | ||||
18.0 | 1750 | 60 | 7.5 | Y132M-4 | ||||
YCB10-1.6 | 10.0 | 970 | 1.6 | 7.0 | 76 | 50 | 11 | Y160L-6 |
15.0 | 1470 | 50 | 15 | Y160L-4 | ||||
12.0 | 1170 | 60 | 11 | Y160L-6 | ||||
18.0 | 1770 | 60 | 18.5 | Y160L-4 | ||||
YCB20-0.6 | 20.0 | 970 | 0.6 | 5.0 | 68 | 50 | 7.5 | Y160M-6 |
24.0 | 1170 | 60 | 7.5 | Y160M-6 | ||||
YCB25-0.6 | 25.0 | 970 | 0.6 | 5.5 | 69 | 50 | 11 | Y160L-6 |
30.0 | 1170 | 60 | 11 | Y160L-6 | ||||
YCB30-0.6 | 30.0 | 970 | 0.6 | 5.5 | 70 | 50 | 11 | Y160L-6 |
36.0 | 1170 | 60 | 11 | Y160L-6 | ||||
YCB40-0.6 | 40.0 | 970 | 0.6 | 5.5 | 72 | 50 | 15 | Y180L-6 |
48.0 | 1180 | 60 | 15 | Y180L-6 | ||||
YCB50-0.6 | 50.0 | 970 | 0.6 | 5.5 | 72 | 50 | 22 | Y200L2-6 |
60.0 | 1180 | 60 | 22 | Y200L2-6 | ||||
