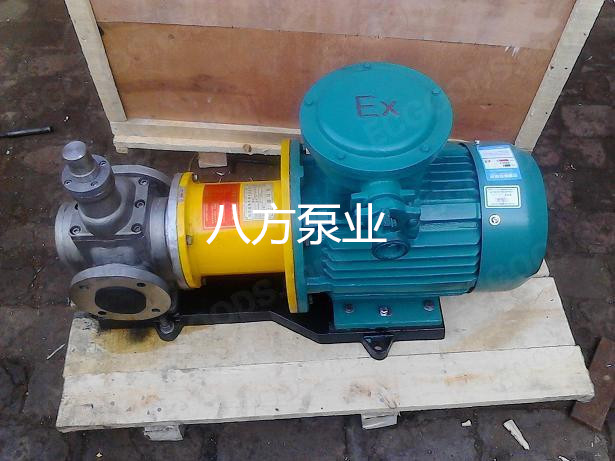

YCB不锈钢圆弧磁力泵
磁力泵（磁力驱动泵）主要由泵头、磁力传动器（磁缸）、电动机、连接底板等几部分零件组成。磁力泵磁力传动器由外磁转子、内磁转子及不导磁的隔离套组成当电动机带动外磁转子旋转时，磁场能穿透空气隙和非磁性物质，带动与叶轮相连的内磁转子作同步旋转，实现动力的无接触同步传递，将容易泄露的动密封结构转化为零泄漏的静密封结构。由于泵轴、内磁转子被泵体、隔离套完全封闭，从而彻底解决了“跑、冒、滴、漏”问题。

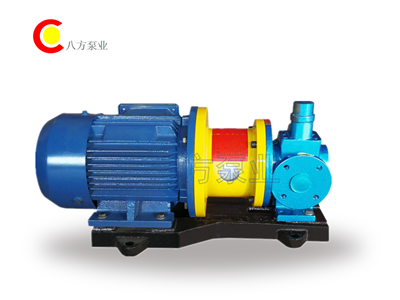

YCB
圆弧磁力泵
,
圆弧磁力泵
,
不锈钢磁力泵适用于输送不含固体颗粒和纤维，无腐蚀性，温度不高于
300
℃
，粘度为
5×10-6
～
1.5×10-3m2/s(5-1500cSt)
的润滑油或性质类似润滑油的其它液体，以及用于液压传动系统。流量
:0.6-60
立方
/
小时
,
压力
0.6-2.5MPA
。设有安全阀作为超载保护，安全阀全回流压力为泵额定排出压力的
1.5
倍。
圆弧齿轮泵性能参数
|
型号 |
流量 Q |
转速
|
排出压力
|
必需汽
|
效率
|
电动机 |
||
|
m3/h |
频率 Hz |
功率 KW |
型号 |
|||||
|
YCB0.6-0.6 |
0.6 |
910 |
0.6 |
5.5 |
32 |
50 |
0.75 |
Y90S-6 |
|
1.0 |
1390 |
50 |
0.75 |
Y80L2-4 |
||||
|
0.7 |
1130 |
60 |
0.75 |
Y90S-6 |
||||
|
1.2 |
1710 |
60 |
0.75 |
Y80L2-4 |
||||
|
YCB0.6-2.5 |
0.6 |
910 |
2.5 |
7.0 |
70 |
50 |
1.1 |
Y90L-6 |
|
1.0 |
1400 |
50 |
1.5 |
Y90L-4 |
||||
|
0.7 |
1130 |
60 |
1.1 |
Y90L-6 |
||||
|
1.2 |
1710 |
60 |
1.1 |
Y90S-4 |
||||
|
YCB1.6-0.6 |
1.6 |
910 |
0.6 |
5.5 |
42 |
50 |
0.75 |
Y90S-6 |
|
2.5 |
1400 |
50 |
1.1 |
Y90S-4 |
||||
|
1.9 |
1130 |
60 |
1.1 |
Y90L-6 |
||||
|
3.0 |
1710 |
60 |
1.5 |
Y90L-4 |
||||
|
YCB1.6-2.5 |
1.6 |
940 |
2.5 |
7.0 |
71 |
50 |
2.2 |
Y112M-6 |
|
2.5 |
1440 |
50 |
4 |
Y112M-4 |
||||
|
1.9 |
1150 |
60 |
2.2 |
Y112M-6 |
||||
|
3.0 |
1750 |
60 |
4 |
Y112M-4 |
||||
|
YCB3.3-0.6 |
3.3 |
940 |
0.6 |
5.0 |
60 |
50 |
1.5 |
Y100L-6 |
|
5.0 |
1420 |
50 |
2.2 |
Y100L1-4 |
||||
|
4.0 |
1150 |
60 |
1.5 |
Y100L-6 |
||||
|
6.0 |
1730 |
60 |
2.2 |
Y100L1-4 |
||||
|
YCB3.3-2.5 |
3.3 |
960 |
2.5 |
7.0 |
72 |
50 |
5.5 |
Y132M2-6 |
|
5.0 |
1440 |
50 |
7.5 |
Y132M-4 |
||||
|
4.0 |
1170 |
60 |
4 |
Y132M1-6 |
||||
|
6.0 |
1750 |
60 |
7.5 |
Y132M-4 |
||||
|
YCB4-0.6 |
4.0 |
940 |
0.6 |
5.0 |
60 |
50 |
1.5 |
Y100L-6 |
|
6.0 |
1420 |
50 |
2.2 |
Y100L1-4 |
||||
|
4.8 |
1150 |
60 |
2.2 |
Y112M-6 |
||||
|
7.2 |
1730 |
60 |
3 |
Y100L2-4 |
||||
|
YCB4-2.5 |
4.0 |
960 |
2.5 |
7.0 |
72 |
50 |
5.5 |
Y132M2-6 |
|
6.0 |
1440 |
50 |
7.5 |
Y132M-4 |
||||
|
4.8 |
1170 |
60 |
5.5 |
Y132M-6 |
||||
|
7.2 |
1750 |
60 |
7.5 |
Y132M-4 |
||||
|
YCB8-0.6 |
8.0 |
960 |
0.6 |
5.0 |
61 |
50 |
3 |
Y132S-6 |
|
12.0 |
1440 |
50 |
5.5 |
Y132S-4 |
||||
|
9.6 |
1170 |
60 |
4 |
Y132M1-6 |
||||
|
14.4 |
1750 |
60 |
5.5 |
Y132S-4 |
||||
|
YCB8-2.5 |
8.0 |
970 |
2.5 |
7.0 |
75 |
50 |
11 |
Y160L-6 |
|
12.0 |
1460 |
50 |
15 |
Y160L-4 |
||||
|
9.6 |
1170 |
60 |
11 |
Y160L-6 |
||||
|
14.4 |
1760 |
60 |
15 |
Y160L-4 |
||||
|
YCB10-0.6 |
10.0 |
960 |
0.6 |
5.0 |
62 |
50 |
4 |
Y132M1-6 |
|
15.0 |
1440 |
50 |
5.5 |
Y132S-4 |
||||
|
12.0 |
1170 |
60 |
5.5 |
Y132M2-6 |
||||
|
18.0 |
1750 |
60 |
7.5 |
Y132M-4 |
||||
|
YCB10-2.5 |
10.0 |
970 |
2.5 |
7.0 |
76 |
50 |
11 |
Y160L-6 |
|
15.0 |
1470 |
50 |
15 |
Y160L-4 |
||||
|
12.0 |
1170 |
60 |
11 |
Y160L-6 |
||||
|
18.0 |
1770 |
60 |
18.5 |
Y180M-4 |
||||
|
YCB20-0.6 |
20.0 |
970 |
0.6 |
5.0 |
68 |
50 |
7.5 |
Y160M-6 |
|
24.0 |
1170 |
60 |
7.5 |
Y160M-6 |
||||
|
YCB25-0.6 |
25.0 |
970 |
0.6 |
5.5 |
69 |
50 |
11 |
Y160L-6 |
|
30.0 |
1170 |
60 |
11 |
Y160L-6 |
||||
|
YCB30-0.6 |
30.0 |
970 |
0.6 |
5.5 |
70 |
50 |
11 |
Y160L-6 |
|
36.0 |
1170 |
60 |
11 |
Y160L-6 |
||||
|
YCB40-0.6 |
40.0 |
970 |
0.6 |
5.5 |
72 |
50 |
15 |
Y180L-6 |
|
48.0 |
1180 |
60 |
15 |
Y180L-6 |
||||
|
YCB50-0.6 |
50.0 |
970 |
0.6 |
5.5 |
72 |
50 |
22 |
Y200L2-6 |
|
60.0 |
1180 |
60 |
22 |
Y200L2-6 |
||||
|
YCB60-0.6 |
60.0 |
1470 |
0.6 |
5.5 |
72 |
50 |
30 |
Y180L-4 |
|
YCB80-0.6 |
80.0 |
980 |
0.6 |
5.5 |
72 |
50 |
30 |
Y205M-6 |
